Capacitive Sensor

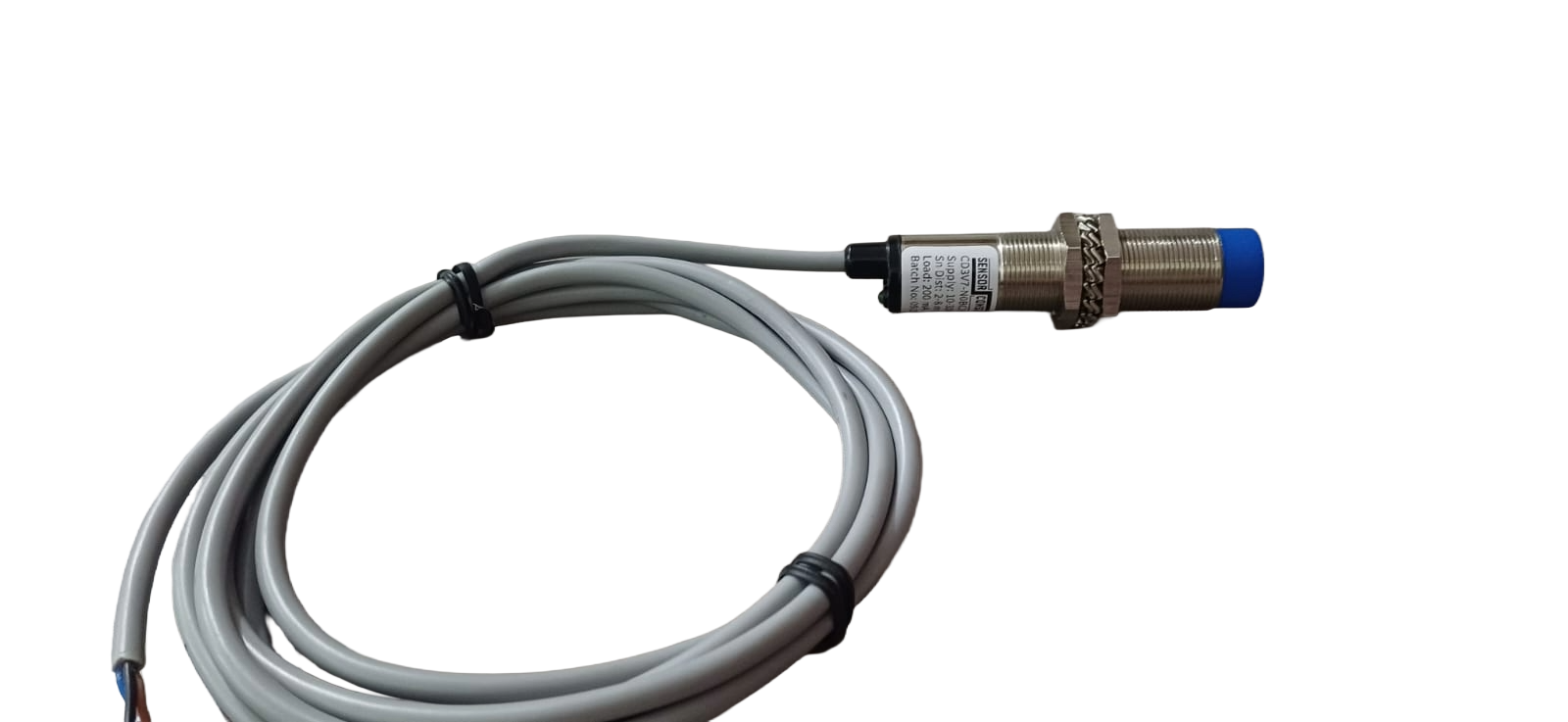

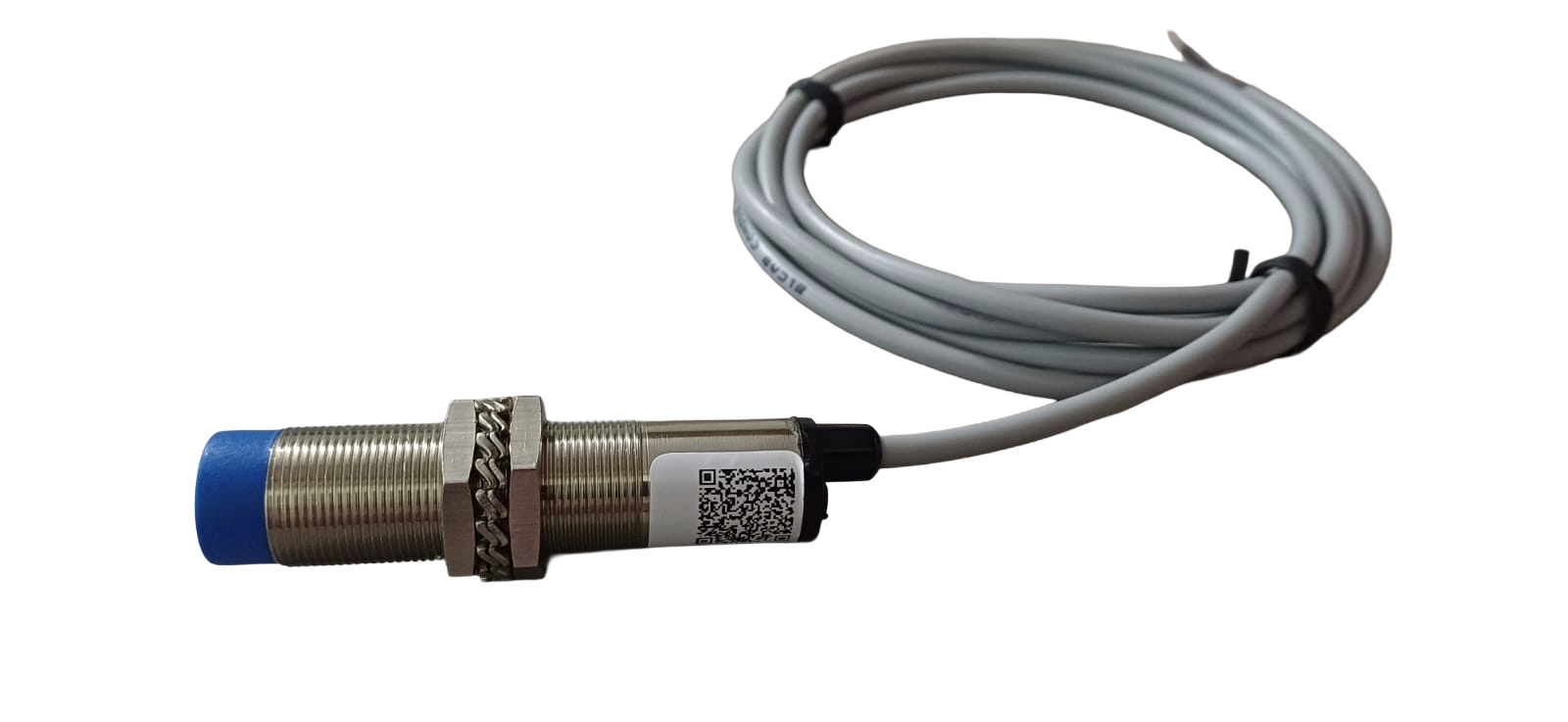

Capacitive Sensor M18 Non-shielded 3/4W DC
Model CDxV7-N0BC2-TBC4 · SensorConsol
Capacitive Sensor in size M18 with non-shielded sensing head is offered in 3WDC or 4WDC connection configuration.
Price on request
- ModelCDxV7-N0BC2-TBC4
- BrandSensorConsol
- CategoryCapacitive Sensor
Capacitive Sensor in M18 with non shielded sensing head can sense non metellic objects such as plastic, wood, glass, acrylic etc. These can be used in process and pharmaceutical industries for position and speed sensing applications.
| Operating Voltage | 10-30V DC |
|---|---|
| Connection | 3/4W DC |
| Sensing Distance | 2 to 8 mm (object dependent) |
| Output load current | 200 mA |
| CD3V7-N0BC2-TBC4 | Capacitive, PnP NO, 3W DC, Non-shielded sensing head |
|---|---|
| CD4V7-N0BC2-TBC4 | Capacitive, PnP NC, 3W DC, Non-shielded sensing head |
| CD5V7-N0BC2-TBC4 | Capacitive, NpN NO, 3W DC, Non-shielded sensing head |
| CD6V7-N0BC2-TBC4 | Capacitive, NpN NC, 3W DC, Non-shielded sensing head |
| CD7V7-N0BC2-TBC4 | Capacitive, PnP NO+NC, 4W DC, Non-shielded sensing head |
| CD8V7-N0BC2-TBC4 | Capacitive, NpN NO+NC, 4W DC, Non-shielded sensing head |
Features
- Sense position & speed of non-metallic objects
- Sensitivity can be adjusted to various objects
- Rugged Design
Applications
- Detection of non-metallic objects in various industries.
