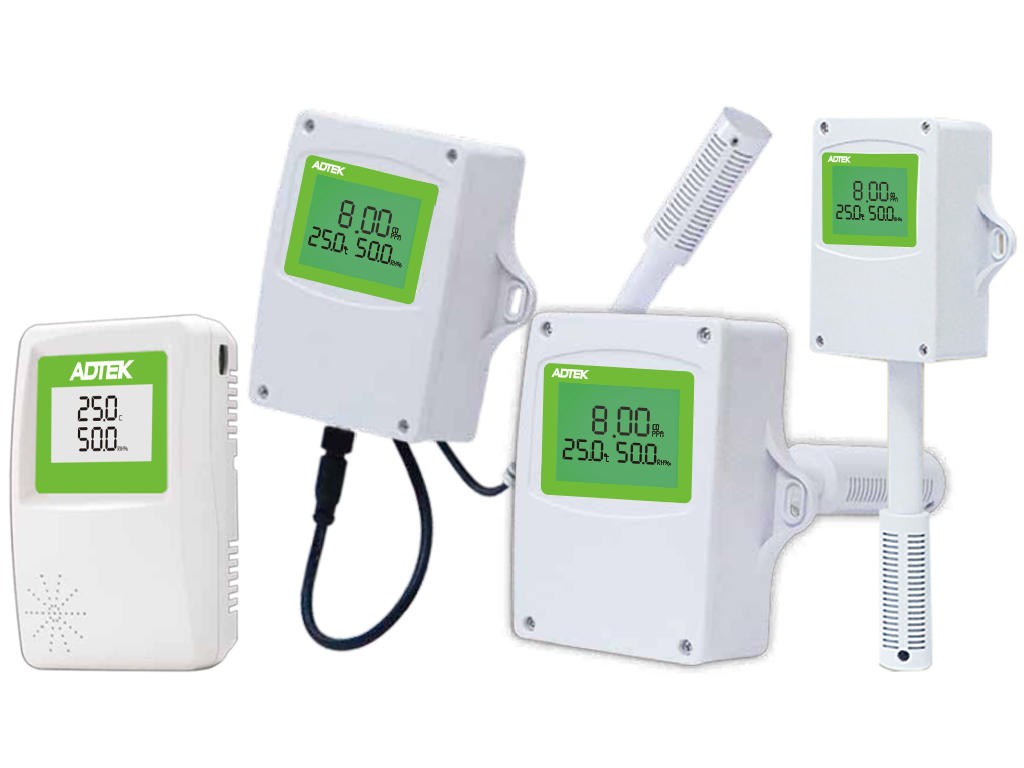

HTO Temperature & Humidity Transmitter
Model HTO · ADTEK
HTO series CO, CO2, Temperature & Humidity transmitter is useful to monitor air quality parameters.
Price on request
- ModelHTO
- BrandADTEK
- CategoryEnvironmental Sensors
The HTO series Air Quality sensors measure temperature, humidity, CO and CO2 in air. It provides analog output signal and optionally MODBUS RS485 port.
The RS485 port or analog signals can be interfaced with ADTEK gateway or even third party IoT gateways to provide remote data access.
Use ordering code structure provided on the accompanying datasheet. Sample ordering codes are shown under the 'Specifications' tab.
| Temp. & Humi. sensing element | CMOS Sensor |
|---|---|
| Temp. & Humi. measuring accuracy | ±2%RH(10~90%RH)(at 25℃ )，±0.4℃ (at 25℃ ) (Power supply 24Vdc, operating temperature at 25℃ ) |
| Temperature measuring range | -50℃ ~100℃ , Can be via USB console port to setting. Initial value is 0℃ ~50℃ |
| Humidity measuring range | 0%RH~100%RH |
| Gas sensing element | CO: Electrochemical sensor / CO2 : NDIR sensor |
| CO measuring range | 0~100ppm or 0~300ppm or 0~500ppm |
| CO2 measuring range | 0~2000ppm or 0~5000ppm or 0~10000ppm |
| Gas Measurement Accuracy | CO:±10ppm / CO2:±70ppm |
| HTO-1-N-M-L-N-D24-4 | Temperature, Humidity, RS-485, 4~20mA output, LCD and Wall mount. |
|---|---|
| HTO-7-3-M-L-N-D24-1 | Temperature, Humidity, CO(300ppm), RS-485, 4~20mA output(CO+Temp.+Humi), LCD and Duct Vertical type. |
| HTO-4-2-S-L-N-D24-3-15 | Temperature, Humidity, CO2(2000ppm), RS-485, 0~10V output(CO2+Temp.+Humi.), LCD, Remote probe and 15M length. |
Features
- CO2 measuring element: NDIR Sensor
- CO measuring element: Electrochemical sensor
- Temperature/Humidity sensing element : CMOS sensor
- Analog output option:4~20mA or 0~10V
- Communication output option:RS-485 Modbus RTU
- Present value offset adjustable
- Inside buttons for adjust output parameters
- LCD backlight color to Indicated CO/CO2 concentration
Applications
- Application of HVAC building environmental ventilation and air-conditioning equipment /
- medical institutions / library / laboratory / air-conditioned clean room / breeding farm /
- department store and hotel / cinema and mass rapid transit / remote real-time monitoring / parking garage /
- indoor air purification system,
- Warehouses and Logistics parks etc.
