Temperature Sensors
Industrial Non-contact Temperature Sensor
Model TF · ADTEK
Industrial non-contact temperature sensor series TF is used to measure surface temperature of hot objects using infrared principle.
Price on request
- ModelTF
- BrandADTEK
- CategoryTemperature Sensors
TF Series fixed installation type temperature sensor measures surface temperature of hot objects and provides 2-wire 4-20 mA analog output for process control applications.

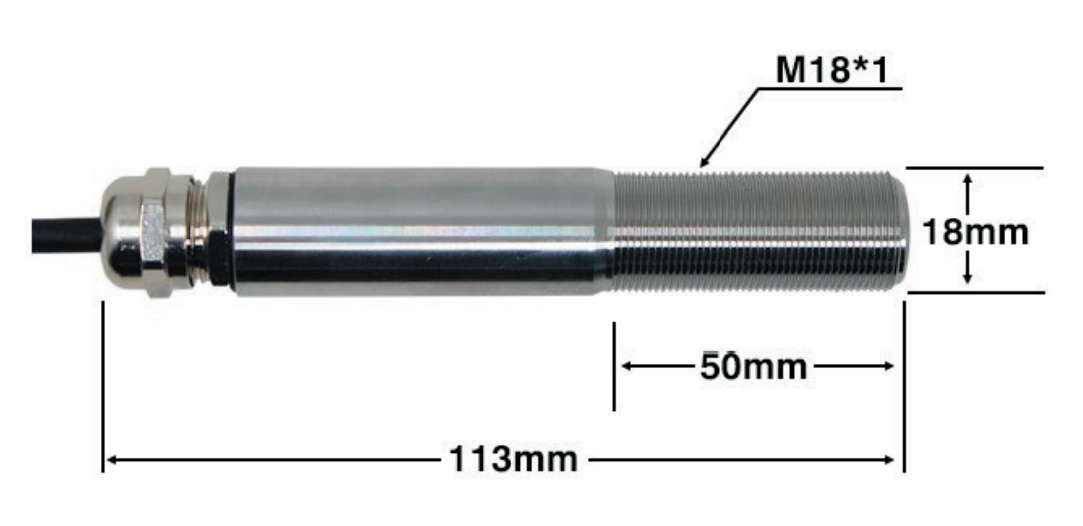

Constructed in SS Enclosure, this sensor is provided with mounting bracket and lock nuts.
With the help of Adtek's precision process indicators, we can deliver a complete product with process temperature measurement, local display unit and analog output for remote process control.
| Measuring Temperature Range | -50 to +600℃ in various selectable codes |
|---|---|
| Spectral Range | 8 to 14 μm |
| Optical Resolution | 20:1 |
| Emissivity | 0.95 (fixed) |
| Measurement Accuracy | ±1% or ±1.5℃ |
| Output | 4 to 20 mA; ≦ 600Ω |
| Response Time | 150 mS |
| Ambient Temperature | 0~60℃ |
| Humidity Rating | 10~95%, Non-condensing |
| Operating Voltage | 10~24Vdc; 1.2W Max. |
Features
- Non-contact measurement;
- safe and durable ˙Integrated design; easy to install; quick response time
- Fast double screw installation
- Durable stainless case
Applications
- Temperature monitoring
- Chemical industry ˙Metal products manufacturing
- Plastic products manufacturing
- Maintenance
