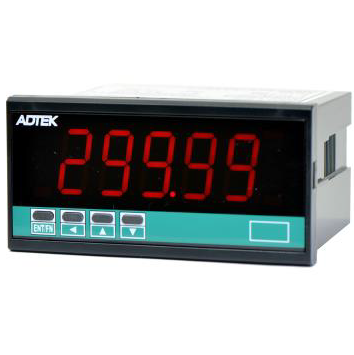

ADTEK CS1-RL Digital Frequency/RPM meter

Model CS1-RL · ADTEK

CS1-RL economic type Frequency Indicator has been designed with high accuracy measurement, display and communication of Frequency.

Price on request

ModelCS1-RL
BrandADTEK
CategoryControl & Automation

Request a quote Datasheets (1)

The innovative feature of CS1-RL series, is auto-range input from 0.01Hz~ 100KHz (option ~140KHz) and the display resolution will auto-change to show the highest according to input frequency. They are also available 1 option of 1 Relay outputs, 1 Analogue output or 1 RS485 (Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of panels and testing applications.

Specifications
Input Signal Range	Regular range: 0.01Hz ~ 100KHz (optional purchase: ~140KHz)
Measurement Accuracy	≤± 0.005% of FS± 1C
Display Range	0.0000~99999, Auto-Moving for d.p.
Display Parameters	RPM / RPS / Linear line speed / Frequency programmable

Ordering Codes
CS1-RL-N12-V-E12-ADH	Digital Freq Meter with input signal 0-100kHz, NpN 12V pulse, Output 0-10V dc and display range 0 to 99999 RPM. Supply Voltage AC85-264V and DC100-300V

Features

Measuring Frequency AUTO RANGE 0.01~100KHz / ~140KHz (optional) / Voltage pulse or sine wave (specify).
Accuracy: ± 0.005%; Display range: 0~99999; Decimal Point auto moving according to input frequency
Option available 1 of 1 relay, 1 analogue output or RS485(Modbus RTU mode)
1 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start Delay / Hysteresis / Energized & De-energized Delay functions.
Analogue output or RS 485 communication port in option
CE Approved & RoHS
