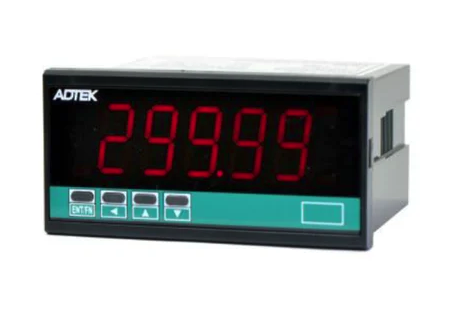

ADTEK CS1-PR 4&2/3 Digit Process Indicator

Model CS1-PR · ADTEK

CS1-PR series Process Indicator has been designed for high accuracy process measurement, display and communication of DC signal 0~10V and 4(0)~20mA.

Price on request

ModelCS1-PR
BrandADTEK
CategoryControl & Automation

Request a quote Datasheets (1)

CS1-PR series Process Indicator has been designed for high accuracy process measurement, display and communication of DC signal 0~10V and 4(0)~20mA. These are also available with option of 1 Relay outputs, 1 Analogue output or 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of industrial applications.

Specifications
Input Signal Range	0~10V / 0~5V / 1~5V / 0-10mA / 0~20mA / 4~20mA/ optional purchase: user-defined input range (code: AV)
Measurement Accuracy	≤± 0.04% of FS ± 1C

Ordering Codes
CS1-PR-V1-N-N-A	Process Meter with 0 ~ 10V / 0(1) ~ 5V DC input, No analog output, No RS485, No Excitation signal and 115/230V AC supply voltage

Features

Measuring linear signal 0~10V and 0(4)~20mA in one indicator(input code: AV)
Option available 1 of 1 relay, 1 analogue output or RS485(Modbus RTU mode)
1 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start Delay / Hysteresis / Energized & De-energized Delay functions.
Analogue output or RS 485 communication port in option
CE Approved & RoHS
