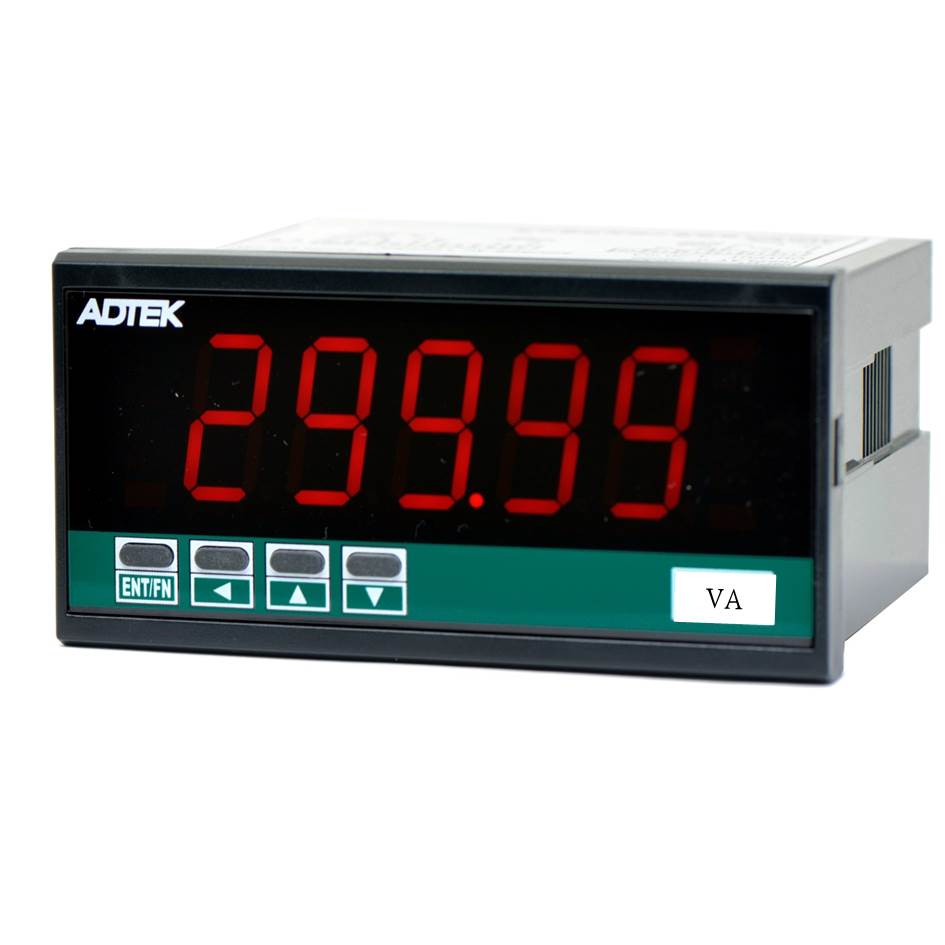

Adtek CS2-VA 4&2/3 Digit Voltage/Current Meter
Model CS2-VA · ADTEK
CS2-VA Voltage/Current Indicator is designed with high accuracy measurement, display and communication. The communication range is 0~600V or 0~10A for DC/AC/TRMS.
Price on request
- ModelCS2-VA
- BrandADTEK
- CategoryControl & Automation
The V/A meter series CS2-VA is designed with 4 Relay outputs, 3 External Control Inputs, 1 Analog output and 1 RS-485 (Modbus RTU Mode) interface providing versatile functions such as control, alarm, transmission and communication. These meters can be widely applied in machinery, equipment inspection, production control, data collection, central monitoring, and overload protection for distribution board.
| DC Measurement Accuracy | ≤± 0.04% of F.S. ± 1C |
|---|---|
| AC Measurement Accuracy | ≤± 0.1% of F.S. ± 1C |
| Sampling Rate | 15 cycles/sec |
| Overload Capacity on input signal lines | Voltage: 2x rated voltage continuous ; 4x rated/2s Current: 3x rated current continuous ; 10x rated/10s ; 50x rated/1s |
| Display Range | -19999~29999 (Programmable) |
| CS2-VA-DA7-R2-N-N-A | CS2-VA with 0-5A DC input signal & two relay contacts. Supply voltage 115/230V AC. No analog output and no RS485 |
|---|---|
| CS2-VA-DVZ-R2-N-N-A | CS2-VA with 0-19.999mV DC input signal, 0 to 19.999mV display & two relay contacts. Supply voltage 115/230V AC. No analog output and no RS485 |
Features
- Measuring Voltage 0~600V or Current 0~10A for DC / AC / TRMS
- 4 relay outputs can be individually programmed to be Hi /Lo /Hi Hold /Lo Hold /Go /DO providing the function such as energized with Start Delay/ Hysteresis / Delay On / Delay Off functions, or Remote Control.
- Analog output and RS-485 communication port are included.
- 3 external control inputs can be individually programmed to be Relative PV (Tare) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Latching Relay.
- High-voltage Input module is optional for metering high-voltage signal.
- CE & RoHS Certification
Applications
- Testing Equipment and Volt/Current Measuring. Connection with PC/PLC for alarm, and communication control.
- 3 DI functions can be programmed to be Maximum/Minimum Reset, PV hold and Relative PV; 4 Relay outputs can be programmed to be Hi / Lo / Go for delay-action switch. The setting time from 0.0(s)~ 9(m):59.9(s).
- Voltage or Current Measuring for MCC panel, Machinery, Switch gear. Connection with PC/PLC for Alarm and Remote I/O.
- 4 Relay outputs can also be programmed to be Hi /Lo /Hi hold /DO( remote control by PC/PLC).
- 3 DI functions can also be programmed to be Reset for Latching( remote monitoring by PC/PLC).
